mbt-rail-1a

MBT Warehouse Rail is the most commonly used floor protection rail for back of house applications, warehouses, cold rooms & trucking route corridors.

Our galvanised steel box section coupled with cast aluminium legs give unsurpassed strength to the daily activities that take place in your back of house. It comes complete with a range of fittings to allow our MBT rail to fit the most challenging of configurations and with our adjustable corner, our rail can be installed at any angle for optimum deflection of pallets, cages and pump trucks.

MBT rail is manufactured from 76 x 51mm galvanized steel box section supplied in 2500mm lengths and is complemented with a range of cast aluminium fittings.

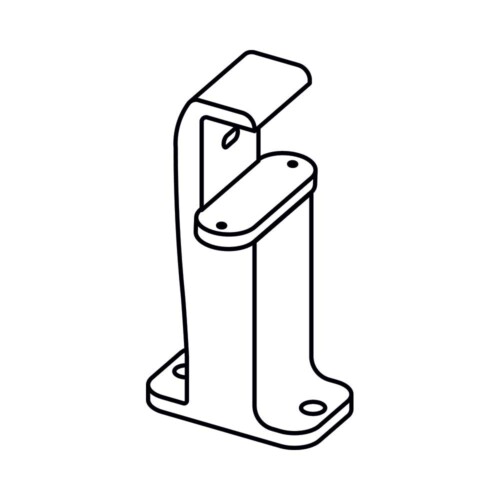

The support foot, with front and back fixing positions, is designed to absorb impact energy and dissipate it throughout the continuous rail. Each foot can withstand a load of 2 tons.

  • 76x51mm Galvanised Steel Box Section
  • Max distance between feet 2500mm
  • Finished height 250mm above floor level
  • Recommended Fixings 2 x M10x80 raw bolts per foot subject to site conditions
  • Cast aluminium fittings

  • Fixed with M10 x 80mm expandable rawlshields & bolts
  • Max distance between feet 2500mm
  • Max distance from end or corner to first foot 150mm
